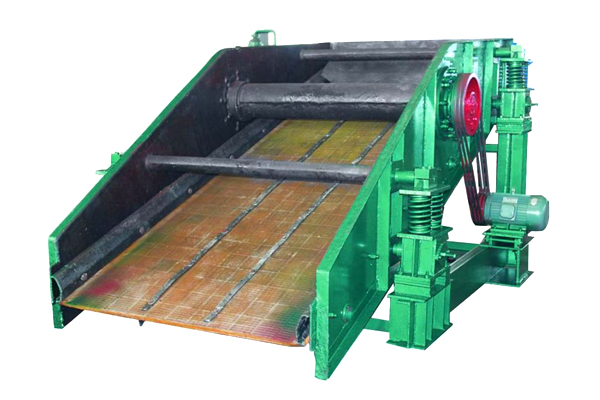

| SZZ型自定中心振動篩 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 型號與規格 | 篩面 | 給料粒度 mm |
生產能力 t/h |
工作參數 | 電動機 | 外型尺寸 （長X寬X高） mm |
重量 t |
||||
| 層數 | 面積M2 | 篩孔尺寸 mm |
振次 min-1 |
雙振幅 mm |
型號 | 功率 KW |
|||||
| SZZ 800X1600 |
1 | 1.3 | 3-40 | ≤100 | 20-25 | 1430 | 6 | Y100L1-4 | 2.2 | 2160X1650X1110 | 0.5 |
| SZZ2 800X1600 |
2 | 1.3 | 3-40 | ≤100 | 20-25 | 1430 | 6 | Y100L2-4 | 3 | 2167X1678X1340 | 0.85 |
| SZZ 1250X2500 |
1 | 3.1 | 6-40 | ≤100 | 150 | 850 | 2-7 | Y132S-4 | 5.5 | 2569X2110X1006 | 1.02 |
| SZZ2 1250X2500 |
2 | 3.1 | 6-50 | ≤150 | 100 | 1200 | 2-6 | Y132M-6 | 5.5 | 2635X2376X1873 | 1.26 |
| 1250X4000 | 2 | 5 | 3-60 | ≤150 | 120 | 900 | 2-6 | Y132M-4 | 7.5 | 4184X2468X3146 | 2.5 |
| SZZ 1500X3000 |
1 | 4.5 | 6-16 | ≤100 | 245 | 800 | 8 | Y132M-4 | 7.5 | 2866X2342X1650 | 2.3 |
| SZZ 1500X4000 |
1 | 6 | 1-13 | ≤75 | 250 | 810 | 8 | Y132M-4 | 7.5 | 3951X2386X2179 | 2.6 |
| SZZ2 1500X3000 |
2 | 4.5 | 6-40 | ≤100 | 245 | 840 | 5-10 | Y132M-4 | 7.5 | 3050X2524X1855 | 2.51 |
| SZZ2X 1500X4000 |
2 | 6 | 6-50 | ≤100 | 250 | 800 | 7 | Y132M-4 | 7.5 | 4155X2754X2656 | 4.1 |
| SZZ2 1800X3600 |
1 | 6.48 | 6-50 | ≤150 | 300 | 750 | 8 | Y180M-4 | 18.5 | 3750X3060X2541 | 4.7 |
注：除SZZ1800X3600座式外，其余均為吊式。
| DD、ZD型礦用單軸振動篩 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 型號與規格 | 篩面 | 給料粒度 mm |
生產能力 t/h |
工作參數 | 電動機 | 外型尺寸 （長X寬X高） mm |
重量 t |
||||
| 層數 | 面積M2 | 篩孔尺寸 mm |
振次 min-1 |
雙振幅 mm |
型號 | 功率 KW |
|||||
| DD918 | 1 | 1.6 | 1-25 | ≤60 | 10-30 | 1000 | 5-6 | Y100L-4 | 2.2 | 1930X1420X1800 | 0.44 |
| 2DD918 | 2 | 1.6 | 1-25 | ≤60 | 10-30 | 1000 | 5-6 | Y100L-4 | 2.2 | 1930X1420X2013 | 0.6 |
| ZD918 | 1 | 1.6 | 1-25 | ≤60 | 10-30 | 1000 | 6 | Y100L-4 | 2.2 | 1930X1737X1434 | 0.56 |
| ZZD918 | 2 | 1.6 | 1-25 | ≤50 | 10-30 | 1000 | 6 | Y100L-4 | 2.2 | 1930X1737X1434 | 0.71 |
| ZD1224 | 1 | 2.9 | 6-40 | ≤100 | 70-210 | 1000 | 7 | Y112M-4 | 4 | 2471X2109X1334 | 1.13 |
| 2ZD1224 | 2 | 2.9 | 6-40 | ≤100 | 70-210 | 850 | 7 | Y112M-4 | 4 | 2560X2099X1780 | 1.55 |
| ZD1224J | 1 | 2.9 | 11X42 13X42 26X35 |
≤100 | 70-210 | 850 | 3.5 | Y112M-4 | 4 | 2471X5149X1334 | 1.1 |
| 2ZD1224J | 2 | 2.9 | 13X42 26X15 43X58 |
≤100 | 70-210 | 800 | 3.5 | Y112M-4 | 4 | 2551X2140X1780 | 1.64 |
| ZD1530 | 1 | 4.5 | 6-50 | ≤100 | 90-270 | 920 | 6-7 | Y132S-4 | 5.5 | 2071X2619X1566 | 1.65 |
| 2ZD1530 | 2 | 4.5 | 6-50 | ≤100 | 90-270 | 850 | 6-7 | Y132S-4 | 5.5 | 3170X2619X2250 | 2.3 |
| ZD1530J | 1 | 4.5 | 11X42 | ≤150 | 90-270 | 850 | 7 | Y132S-4 | 5.5 | 3071X2674X1566 | 1.9 |
| 2ZD1530J | 2 | 4.5 | 13X42 26X15 43X58 |
≤100 | 90-270 | 850 | 7 | Y132S-4 | 5.5 | 3170X2683X2250 | 2.7 |
| ZD1540 | 1 | 6 | 6-50 | ≤100 | 90-270 | 850 | 7 | Y132M-4 | 7.5 | 4069X2651X2028 | 2.1 |
| 2ZD1540 | 2 | 6 | 6-50 | ≤100 | 90-270 | 850 | 7 | Y132M-4 | 7.5 | 4156X2651X2656 | 2.9 |
| ZD1836 | 1 | 6.5 | 6-50 | ≤150 | 100-300 | 850 | 7 | Y160M-4 | 11 | 3669X3016X1807 | 2 |
| ZD1836J | 1 | 6.5 | 43X58 87X104 |
≤150 | 100-300 | 850 | 7 | Y160M-4 | 11 | 3069X3100X1807 | 4.8 |
| ZD2160 | 1 | 12 | 10-50 | ≤150 | 240-540 | 900 | 8 | Y180L-4 | 22 | 6080X3776X3075 | 6.6 |
注：型號重D0-表示吊式單軸，Z0-表示不吊式單軸，J-表表示橡膠篩板。
